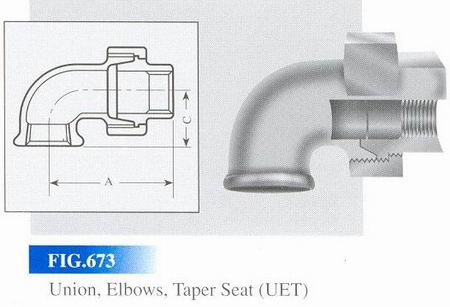

                                    NOMINAL SIZE               A          C
                  mm                 inch                           mm                  mm
                    8                  1/4           48         21
                   10                  3/8             52         25
                   15                  1/2          58         28
                   20                  3/4          62         33
                   25                   1          72         38
                   32                  1¼         82         45
                   40                  1½         90         50
                   50                   2         100         58
