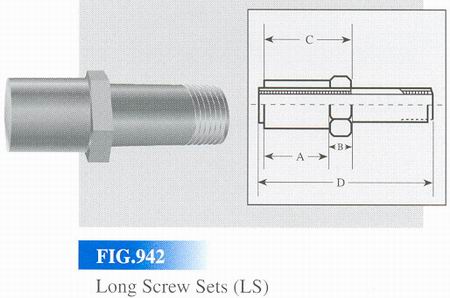

                          NOMINAL SIZE      A      B      C      D
                   mm                 inch                    mm       mm       mm       mm
                    15                  1/2     35      8     52    100
                    20                  3/4     37      9     54    100
                    25                   1     43     9.5     62    100
                    32                       48     11     70    150
                    40                  1½     48     12     71    150
                    50                   2     57     13     82    150
                    65                  2½     65     17     97    150
                    80                   3     71     21    106    200
                   100                   4     84     22    121    200
